捆綁帶又稱貨物捆扎帶，是使用在貨物的運輸、移動、裝運或者倉儲時固定功能，它們具有鎖緊性，不會脫落，安全可靠，輕便、操作簡便， 保護物體不受損傷。可以根據不同的鉤類，適用于各類環境。又名捆綁器、緊固器、緊固帶、軍用捆綁帶 技術指標： ① 材料：聚酯、尼龍織帶、丙綸 ② 標準：歐洲標準EN12195-2：2001 ③ 長度：根據客戶要求 ④ 安全系數： 2：1 ，極限工作力下延伸率≦7% ⑤ 破斷強度指數：500kg~10000kg ⑥ 儲存溫度范圍：聚酯、尼龍材質的捆綁帶為 -40℃~100℃，丙綸材質的捆綁帶為-40℃~80℃。 規格參數： 產品型號 | 工作拉力：LC | 破斷載荷 | 適用帶寬 | RTD25-040 | LC400/800daN | 800kg | 25mm | RTD25-050 | LC500/1000daN | 1000kg | 25mm | RTD35-100 | LC1000/2000daN | 2000kg | 35mm | RTD35-150 | LC1500/3000daN | 3000kg | 35mm | RTD50-100 | LC1000/2000daN | 2000kg | 50mm | RTD50-200 | LC2000/4000daN | 4000kg | 50mm | RTD50-250 | LC2500/5000daN | 5000kg | 50mm | RTD75-400 | LC4000/8000daN | 8000kg | 75mm | RTD100-500 | LC5000/10000daN | 10000kg | 100mm |

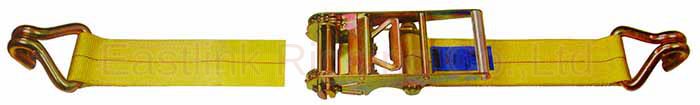

貨鉤匹配： RTD – 兩端鉤子為 雙J鉤 RTS -- 為 “S”型鉤 RTC -- 為 爪 鉤
歐標拉緊器 Strap Material: High tenacity 100% Polyester
Safety Factor: 2:1 or 3:1
Length/Color: As required
Certificate:CE/GS
Standard: EN 12195-2, WSTDA, AS/NZS 4380.2001
End fittings: Double J hook,Claw hook,S hook,Flat hook,Swivel hook,
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD100-500 | 100 | 5000 | 10000 | 12500 | Any | | RTD75-350 | 75 | 5000 | 10000 | 12500 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD50-250 | 50 | 2500 | 5000 | 6250 | Any | | RTD50-250-1 | 50 | 2500 | 5000 | 7500 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD50-200 | 50 | 2000 | 4000 | 5000 | Any | | RTD50-200-1 | 50 | 2000 | 4000 | 6000 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD50-150 | 50 | 1500 | 3000 | 3750 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD35-150 | 35 | 1500 | 3000 | 3750 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD35-100 | 35 | 1000 | 2000 | 2500 | Any | | RTD35-100-1 | 35 | 1000 | 2000 | 3000 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD25-050 | 25 | 500 | 1000 | 1250 | Any | | RTD25-050-1 | 25 | 500 | 1000 | 1500 | Any |
| Model | Width(mm) | LC(kg) | MBS(kg) | Webbing B/S(kg) | Length | | RTD25-040 | 25 | 400 | 800 | 1000 | Any | | RTD25-040-1 | 25 | 400 | 800 | 1200 | Any |
|
